日本阪上SAKAGAMI阪上SAKAGAMI密封

更多進口品牌

Hallite 特瑞堡 德氏封 華爾卡 simrit NOK
阪上SAKAGAMI密封日本阪上SAKAGAMI
  •  SKY 孔軸通用密封  SAKAGAMI 阪上 液壓 密封件  小提示：CTRL+F 可直接查到規格
    • SKY SKY
訂購致電:0755-28545652 手機:13602589346

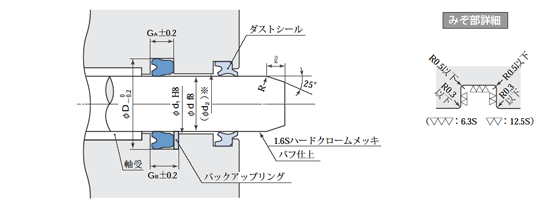

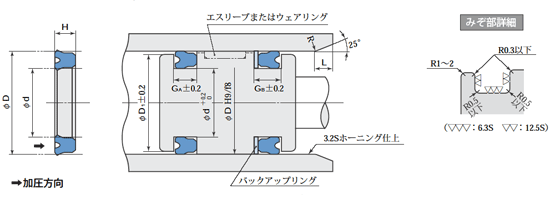

型號明細表 密封件的公稱尺寸及腔體尺寸 (単位：mm）
SKY密封 配套支承環
（PT111）
標準
（RN 906）		 耐熱用
（RF 905）
（RF 907）		 耐寒用
（RN 903）		 d D H GA GB D1 d1
(參考)		 L
SKY-0010001N906     TBC-0010007T111 10 18 5 5.7 6.7 17 10.4 3 1.5
SKY-0012001N906     TBC-0012003T111 12 20 5 5.7 6.7 19 12.4 3 1.5
*SKY-12.5     TCS-20×12.5 12.5 20 5 5.7 6.7 19 12.9 3 1.5
SKY-14 *SKY-14F   TCS-22×14 14 22 5 5.7 6.7 21 14.4 3 1.5
SKY-16 SKY-16F   TCS-24×16 16 24 5 5.7 6.7 23 16.4 3 1.5
*SKY-0017001N906     TCS-25×17 17 25 5 5.7 6.7 24 17.4 3 1.5
SKY-18 SKY-18F   TCS-26×18 18 26 5 5.7 6.7 25 18.4 3 1.5
SKY-20 SKY-20F *SKY-20N TCS-28×20 20 28 5 5.7 6.7 27 20.4 3 1.5
*SKY-0020001N906     TBC-0020006T111 20 30 6 7 8.5 29 20.4 3 1.5
SKY-22 *SKY-22F   TCS-30×22 22 30 5 5.7 6.7 29 22.4 3 1.5
SKY-22.4 SKY-22.4F   TCS-30×22.4 22.4 30 5 5.7 6.7 29 22.8 3 1.5
SKY-23.5 *SKY-23.5F   TCS-31.5×23.5 23.5 31.5 5 5.7 6.7 30.5 23.9 3 1.5
*SKY-0024002N906     TCS-32×24 24 32 5 5.7 6.7 31 24.4 3 1.5
SKY-25 SKY-25F *SKY-25N TCS-33×25 25 33 5 5.7 6.7 32 25.4 3 1.5
*SKY-0026001N906     TBC-0026005T111 26 34 5 5.7 6.7 33 26.4 3 1.5
SKY-0027001N906     TCS-35×27 27 35 5 5.7 6.7 34 27.4 3 1.5
SKY-28 SKY-28F *SKY-28N TCS-35.5×28 28 35.5 5 5.7 6.7 34.5 28.4 3 1.5
*SKY-28A     TCS-36×28 28 36 5 5.7 6.7 35 28.4 3 1.5
*SKY-0030001N906     TBC-0030005T111 30 38 5 5.7 6.7 37 30.5 3.5 3
SKY-30 SKY-30F *SKY-30N TCS-40×30 30 40 6 7 8.5 39 30.5 3.5 3
SKY-31.5 *SKY-31.5F   TCS-41.5×31.5 31.5 41.5 6 7 8.5 40.5 32 3.5 3
SKY-32     TCS-42×32 32 42 6 7 8.5 41 32.5 3.5 3
SKY-35 SKY-35F *SKY-35N TCS-45×35 35 45 6 7 8.5 44 35.5 3.5 3
SKY-35.5 SKY-35.5F *SKY-35.5N TCS-45×35.5 35.5 45 6 7 8.5 44 36 3.5 3
*SKY-35.5A     TCS-45.5×35.5 35.5 45.5 6 7 8.5 44.5 36 3.5 3
SKY-36 *SKY-36F   TCS-46×36 36 46 6 7 8.5 45 36.5 3.5 3
SKY-0038001N906     TBC-0038003T111 38 48 6 7 8.5 47 38.5 3.5 3
SKY-40 SKY-40F *SKY-40N TCS-50×40 40 50 6 7 8.5 49 40.5 3.5 3
SKY-45 SKY-45F *SKY-45N TCS-55×45 45 55 6 7 8.5 54 45.5 3.5 3
SKY-45A *SKY-45AF *SKY-45AN TCS-56×45 45 56 7 8 9.5 55 45.5 3.5 3
SKY-50 SKY-50F *SKY-50N TCS-60×50 50 60 6 7 8.5 59 50.5 3.5 3
SKY-53 SKY-53F   TCS-63×53 53 63 6 7 8.5 62 53.6 3.5 3
SKY-55 SKY-55F *SKY-55N TCS-65×55 55 65 6 7 8.5 64 55.6 3.5 3
SKY-56 SKY-56F   TCS-66×56 56 66 6 7 8.5 65 56.6 3.5 3
*SKY-0058001N906     TBC-0058004T111 58 68 6 7 8.5 67 58.6 3.5 3
SKY-60 SKY-60F *SKY-60N TCS-70×60 60 70 6 7 8.5 69 60.6 3.5 3
SKY-60A *SKY-60AF   TCS-71×60 60 71 7 8 9.5 70 60.6 3.5 3
*SKY-0061001N906       61 71 6 7 8.5 70 61.6 3.5 3
SKY-63 *SKY-63F *SKY-63N TCS-73×63 63 73 6 7 8.5 72 63.6 3.5 3
SKY-65 *SKY-65F *SKY-65N TCS-75×65 65 75 6 7 8.5 74 65.6 3.5 3
*SKY-67 *SKY-67F   TCS-77×67 67 77 6 7 8.5 76 67.6 3.5 3
SKY-70 SKY-70F *SKY-70N TCS-80×70 70 80 6 7 8.5 79 70.6 3.5 3
SKY-71 SKY-71F   TCS-80×71 71 80 6 7 8.5 79 71.6 3.5 3
SKY-75 *SKY-75F *SKY-75N TCS-85×75 75 85 6 7 8.5 84 75.6 3.5 3
SKY-80 SKY-80F *SKY-80N TCS-90×80 80 90 6 7 8.5 89 80.6 3.5 3
*SKY-0085002N906     TBC-0085001T111 85 95 6 7 8.5 94 85.6 3.5 3
SKY-85 SKY-85F *SKY-85N TCS-100×85 85 100 9 10 12 98 85.6 4 4
*SKY-86 *SKY-86F   TCS-100×86 86 100 8.5 9.5 11.5 98 86.6 4 4
SKY-0089001N906     TBC-0089001T111 89 104 9 10 12 102 89.6 4 4
SKY-0090001N906     TBC-0090013T111 90 100 6 7 8.5 99 90.6 4 4
SKY-90 *SKY-90F *SKY-90N TCS-105×90 90 105 9 10 12 103 90.6 4 4
SKY-95 SKY-95F   TCS-110×95 95 110 9 10 12 108 95.6 4 4
*SKY-0096001N906     TBC-0096001T111 96 111 9 10 12 109 96.6 4 4
SKY-98 *SKY-98F   TCS-112×98 98 112 8.5 9.5 11.5 110 98.6 4 4
SKY-100 SKY-100F *SKY-100N TCS-115×100 100 115 9 10 12 113 100.6 4 4
SKY-0105002N906     TBC-0105001T111 105 120 9 10 12 118 105.6 4 4
SKY-106 *SKY-106F *SKY-106N TCS-120×106 106 120 8.5 9.5 11.5 118 106.6 4 4
SKY-0110003N906     TBC-0110001T111 110 125 9 10 12 123 110.6 4 4
SKY-112 SKY-112F   TCS-125×112 112 125 8.5 9.5 11.5 123 112.6 4 4
SKY-112A SKY-112AF   TCS-125×112 112 125 9 10 12 123 112.6 4 4
*SKY-0115002N906   *SKY-0115001N903 TBC-0115002T111 115 130 8.5 9.5 11.5 128 115.6 4 4
SKY-118 *SKY-118F *SKY-118N TCS-132×118 118 132 8.5 9.5 11.5 130 118.6 4 4
*SKY-0119001N906     TBC-0119001T111 119 133 8.5 9.5 11.5 131 119.6 4 4
SKY-0120002N906     TBC-0120001T111 120 135 9 10 12 133 120.6 4 4
SKY-125 SKY-125F *SKY-125N TCS-140×125 125 140 9 10 12 138 125.6 4 4
*SKY-0130001N906     TBC-0130001T111 130 145 9 10 12 143 130.6 4 4
SKY-132 *SKY-132F   TCS-145×132 132 145 8.5 9.5 11.5 143 132.6 4 4
SKY-136 SKY-136F   TCS-150×136 136 150 8.5 9.5 11.5 148 136.6 4 4
SKY-140 *SKY-140F   TCS-155×140 140 155 9 10 12 153 140.6 4 4
SKY-145 *SKY-145F *SKY-145N TCS-160×145 145 160 9 10 12 158 145.6 4 4
SKY-150 *SKY-150F   TCS-165×150 150 165 9 10 12 163 150.6 4 4
SKY-155 *SKY-155F   TCS-170×155 155 170 9 10 12 168 155.6 4 4
SKY-160 *SKY-160F   TCS-175×160 160 175 9 10 12 173 160.6 4 4
SKY-165 SKY-165F   TCS-180×165 165 180 9 10 12 178 165.6 4 4
*SKY-0170001N906     TBC-0170001T111 170 185 9 10 12 183 170.6 4 4
SKY-175 *SKY-175F   TCS-190×175 175 190 9 10 12 188 175.6 4 4
SKY-180 SKY-180F   TCS-200×180 180 200 12 13 15.5 198 180.8 5 5
*SKY-0185001N906     TBC-0185001T111 185 205 12 13 15.5 203 185.8 5 5
*SKY-0190003N906 *SKY-0190001F905   TBC-0190004T111 190 210 12 13 15.5 208 190.8 5 5
*SKY-0195001N906     TBC-0195006T111 195 215 12 13 15.5 213 195.8 5 5
SKY-200 *SKY-200F   TCS-220×200 200 220 12 13 15.5 218 200.8 5 5
SKY-204 *SKY-204F   TCS-224×204 204 224 12 13 15.5 222 204.8 5 5
*SKY-0210002N906 *SKY-0210001F905   TBC-0210004T111 210 230 12 13 15.5 228 210.8 5 5
*SKY-0215001N906     TBC-0215003T111 215 235 12 13 15.5 233 215.8 5 5
*SKY-0220001N906     TBC-0220003T111 220 240 12 13 15.5 238 220.8 5 5
*SKY-224 *SKY-224F   TCS-244×224 224 244 12 13 15.5 242 224.8 5 5
SKY-230 SKY-230F   TCS-250×230 230 250 12 13 15.5 248 230.8 5 5
*SKY-0235001N906     TBC-0235001T111 235 255 12 13 15.5 253 235.8 5 5
*SKY-0237001N906       237 257 12 13 15.5 255 237.8 5 5
*SKY-0245001N906     TBC-0245004T111 245 265 12 13 15.5 263 245.8 5 5
SKY-250 *SKY-250F   TCS-270×250 250 270 12 13 15.5 268 250.8 5 5
SKY-260 *SKY-260F   TCS-280×260 260 280 14 15 18 278 260.8 5 5
SKY-280 *SKY-280F   TCS-300×280 280 300 14 15 18 298 280.8 5 5
*SKY-0290001N906     TBC-0290001T111 290 310 14 15 18 308 290.8 5 5
SKY-295 *SKY-295F   TCS-315×295 295 315 14 15 18 313 295.8 5 5
*SKY-0300003N906     TBC-0300003T111 300 320 12 13 16 318 300.8 5 5
*SKY-0310001N906     TBC-0310002T111 310 330 14 15 18 328 311 5 5
*SKY-315     TCS-335×315 315 335 14 15 18 333 316 5 5
*SKY-335     TCS-355×335 335 355 14 15 18 353 336 5 5
*SKY-355     TCS-375×355 355 375 14 15 18 373 356 5 5
*SKY-380 *SKY-380F   TCS-400×380 380 400 14 15 18 398 381 5 5
*SKY-400     TCS-420×400 400 420 14 15 18 418 401 5 5
*SKY-430     TCS-450×430 430 450 14 15 18 448 431 5 5
*SKY-450     TCS-470×450 450 470 14 15 18 468 451 5 5
*SKY-480     TCS-500×480 480 500 14 15 18 498 481 5 5
*SKY-0500001N906     TBC-0500002T111 500 525 17 18 21 522 501 5 5
*SKY-0540001N906     TBC-0540001T111 540 560 14 15 18 558 541 5 5
*SKY-0550001N906     TBC-0550001T111 550 570 13 14 17 568 551 5 5
*SKY-0610001N906     TBC-0610001T111 610 630 14 15 18 628 611 5 5
*SKY-0630001N906     TBC-0630001T111 630 655 17 18 21 652 631 5 5
SKY-0660001N906       660 690 18 19 22 687 661 5 5
*SKY-0770001N906       770 800 18 19 22 797 771 5 5
