- RNY 活塞桿專用液壓密封件 SAKAGAMI 阪上 液壓 密封件 電話:13602589346
訂購致電:0755-28545652 手機:13602589346
| 型號明細 | 互換SKY |

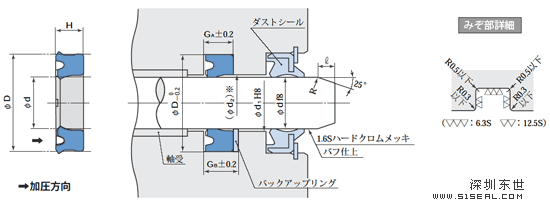

密封件的公稱尺寸及腔體尺寸(単位：mm） | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 標準 （RN922) |
適用 （PT111） |
d | D | H | GA | GB | d1(參考) |  |
|
| *RNY-16 | TCS-24×16 | *SKY-16 | 16 | 24 | 5.1 | 5.7 | 6.7 | 16.4 | 2.5 |
| RNY-18 | *TCS-26×18 | *SKY-18 | 18 | 26 | 5.1 | 5.7 | 6.7 | 18.4 | 2.5 |
| RNY-20 | *TCS-28×20 | *SKY-20 | 20 | 28 | 5.1 | 5.7 | 6.7 | 20.4 | 2.5 |
| RNY-22 | *TCS-30×22 | *SKY-22 | 22 | 30 | 5.1 | 5.7 | 6.7 | 22.4 | 2.5 |
| *RNY-22.4 | *TCS-30×22.4 | *SKY-22.4 | 22.4 | 30 | 5.1 | 5.7 | 6.7 | 22.8 | 2.5 |
| RNY-25 | TCS-33×25 | *SKY-25 | 25 | 33 | 5.1 | 5.7 | 6.7 | 25.4 | 2.5 |
| RNY-28 | TCS-35.5×28 | *SKY-28 | 28 | 35.5 | 5.1 | 5.7 | 6.7 | 28.4 | 2.5 |
| RNY-30 | TCS-40×30 | *SKY-30 | 30 | 40 | 6.2 | 7 | 8.5 | 30.5 | 3 |
| *RNY-31.5 | *TCS-41.5×31.5 | *SKY-31.5 | 31.5 | 41.5 | 6.2 | 7 | 8.5 | 32 | 3 |
| RNY-32 | *TCS-42×32 | *SKY-32 | 32 | 42 | 6.2 | 7 | 8.5 | 32.5 | 3 |
| RNY-35 | TCS-45×35 | *SKY-35 | 35 | 45 | 6.2 | 7 | 8.5 | 35.5 | 3 |
| *RNY-35.5 | *TCS-45×35.5 | *SKY-35.5 | 35.5 | 45 | 6.2 | 7 | 8.5 | 36 | 3 |
| *RNY-36 | *TCS-46×36 | *SKY-36 | 36 | 46 | 6.2 | 7 | 8.5 | 36.5 | 3 |
| RNY-40 | TCS-50×40 | *SKY-40 | 40 | 50 | 6.2 | 7 | 8.5 | 40.5 | 3 |
| RNY-45 | TCS-55×45 | *SKY-45 | 45 | 55 | 6.2 | 7 | 8.5 | 45.5 | 3 |
| RNY-45A | *TCS-56×45 | *SKY-45A | 45 | 56 | 7.2 | 8 | 9.5 | 45.5 | 3 |
| RNY-50 | TCS-60×50 | *SKY-50 | 50 | 60 | 6.2 | 7 | 8.5 | 50.5 | 3 |
| RNY-55 | TCS-65×55 | *SKY-55 | 55 | 65 | 6.2 | 7 | 8.5 | 55.6 | 3 |
| *RNY-56 | TCS-66×56 | *SKY-56 | 56 | 66 | 6.2 | 7 | 8.5 | 56.6 | 3 |
| RNY-60 | *TCS-70×60 | *SKY-60 | 60 | 70 | 6.2 | 7 | 8.5 | 60.6 | 3 |
| *RNY-60A | *TCS-71×60 | *SKY-60A | 60 | 71 | 7.2 | 8 | 9.5 | 60.6 | 3 |
| *RNY-63 | *TCS-73×63 | *SKY-63 | 63 | 73 | 6.2 | 7 | 8.5 | 63.6 | 3 |
| RNY-65 | *TCS-75×65 | *SKY-65 | 65 | 75 | 6.2 | 7 | 8.5 | 65.6 | 3 |
| *RNY-65B | *TCS-78×65 | ―― | 65 | 78 | 8.2 | 9 | 11 | 65.6 | 3.5 |
| RNY-70 | TCS-80×70 | *SKY-70 | 70 | 80 | 6.2 | 7 | 8.5 | 70.6 | 3.5 |
| *RNY-70B | *TCS-85×70 | ―― | 70 | 85 | 9.2 | 10 | 12 | 70.6 | 3.5 |
| *RNY-71 | *TCS-80×71 | *SKY-71 | 71 | 80 | 6.2 | 7 | 8.5 | 71.6 | 3.5 |
| *RNY-75 | TCS-85×75 | *SKY-75 | 75 | 85 | 6.2 | 7 | 8.5 | 75.6 | 3.5 |
| *RNY-75B | *TCS-90×75 | ―― | 75 | 90 | 9.2 | 10 | 12 | 75.6 | 3.5 |
| RNY-80 | *TCS-90×80 | *SKY-80 | 80 | 90 | 6.2 | 7 | 8.5 | 80.6 | 3.5 |
| *RNY-80B | *TCS-95×80 | ―― | 80 | 95 | 9.2 | 10 | 12 | 80.6 | 4 |
| *RNY-85 | TCS-100×85 | *SKY-85 | 85 | 100 | 9.2 | 10 | 12 | 85.6 | 4 |
| *RNY-90 | *TCS-105×90 | *SKY-90 | 90 | 105 | 9.2 | 10 | 12 | 90.6 | 4 |
| *RNY-100 | *TCS-115×100 | *SKY-100 | 100 | 115 | 9.2 | 10 | 12 | 100.6 | 4 |
| *RNY-110 | *TCS-125×110 | *SKY-110 | 110 | 125 | 9.2 | 10 | 12 | 110.6 | 4 |
| RNY-112 | *TCS-125×112 | *SKY-112, 112A | 112 | 125 | 8.7 | 10 | 12 | 112.6 | 4 |
| RNY-125 | *TCS-140×125 | *SKY-125 | 125 | 140 | 9.2 | 10 | 12 | 125.6 | 4 |
| *RNY-140 | *TCS-155×140 | *SKY-140 | 140 | 155 | 9.2 | 10 | 12 | 140.6 | 4 |
| *RNY-160 | *TCS-175×160 | *SKY-160 | 160 | 175 | 9.2 | 10 | 12 | 160.6 | 4 |
| *RNY-180 | *TCS-200×180 | *SKY-180 | 180 | 200 | 12.2 | 13 | 15.5 | 180.7 | 5.5 |
