| 型號明細 | 互換SKY |

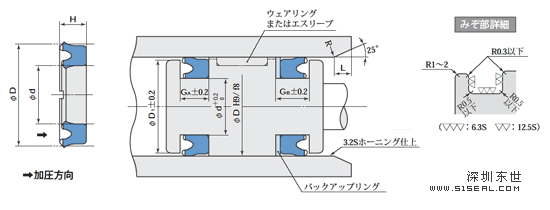

密封件的公稱尺寸及腔體尺寸(単位：mm） | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 標準 （RN923） |
適用 （PT111） |
D | d | H | GA | GB | D1 | L | |
| RGY-40 | TCS-40×30 | *SKY-30 | 40 | 30 | 6.2 | 7 | 8.5 | 39 | 3.5 |
| RGY-45 | TCS-45×35 | *SKY-35 | 45 | 35 | 6.2 | 7 | 8.5 | 44 | 3.5 |
| RGY-50 | TCS-50×40 | *SKY-40 | 50 | 40 | 6.2 | 7 | 8.5 | 49 | 3.5 |
| RGY-55 | TCS-55×45 | *SKY-45 | 55 | 45 | 6.2 | 7 | 8.5 | 54 | 3.5 |
| RGY-60 | TCS-60×50 | *SKY-50 | 60 | 50 | 6.2 | 7 | 8.5 | 59 | 3.5 |
| RGY-63 | TCS-63×53 | *SKY-53 | 63 | 53 | 6.2 | 7 | 8.5 | 62 | 3.5 |
| *RGY-65 | TCS-65×55 | *SKY-55 | 65 | 55 | 6.2 | 7 | 8.5 | 64 | 3.5 |
| RGY-70 | *TCS-70×60 | *SKY-60 | 70 | 60 | 6.2 | 7 | 8.5 | 69 | 3.5 |
| *RGY-70B | *TCS-70×57 | ―― | 70 | 57 | 8.2 | 9 | 11 | 69 | 4 |
| RGY-75 | *TCS-75×65 | *SKY-65 | 75 | 65 | 6.2 | 7 | 8.5 | 74 | 4 |
| *RGY-75B | *TCS-75×62 | ―― | 75 | 62 | 8.2 | 9 | 11 | 74 | 4 |
| *RGY-80 | TCS-80×70 | *SKY-70 | 80 | 70 | 6.2 | 7 | 8.5 | 79 | 4 |
| RGY-80A | *TCS-80×71 | *SKY-71 | 80 | 71 | 6.2 | 7 | 8.5 | 79 | 4 |
| *RGY-80B | *TCS-80×65 | ―― | 80 | 65 | 9.2 | 10 | 12 | 79 | 4 |
| RGY-90 | *TCS-90×80 | *SKY-80 | 90 | 80 | 6.2 | 7 | 8.5 | 89 | 4 |
| *RGY-90B | *TCS-90×75 | ―― | 90 | 75 | 9.2 | 10 | 12 | 88 | 4 |
| RGY-100 | TCS-100×85 | *SKY-85 | 100 | 85 | 9.2 | 10 | 12 | 98 | 4 |
| RGY-110 | *TCS-110×95 | *SKY-95 | 110 | 95 | 9.2 | 10 | 12 | 108 | 4 |
| RGY-120 | *TCS-120×106 | *SKY-106 | 120 | 106 | 8.7 | 9.5 | 11.5 | 118 | 4 |
| RGY-125 | *TCS-125×112 | *SKY-112, 112A | 125 | 112 | 8.7 | 9.5 | 11.5 | 123 | 4 |
| RGY-140 | *TCS-140×125 | *SKY-125 | 140 | 125 | 9.2 | 10 | 12 | 138 | 4 |
| RGY-150 | *TCS-150×136 | *SKY-136 | 150 | 136 | 8.7 | 9.5 | 11.5 | 148 | 4 |
| RGY-160 | *TCS-160×145 | *SKY-145 | 160 | 145 | 9.2 | 10 | 12 | 158 | 4 |
| RGY-180 | TCS-180×165 | *SKY-165 | 180 | 165 | 9.2 | 10 | 12 | 178 | 4 |
| *RGY-200 | *TCS-200×180 | *SKY-180 | 200 | 180 | 12.2 | 13 | 15.5 | 198 | 5.5 |
| *RGY-224 | *TCS-224×204 | *SKY-204 | 224 | 204 | 12.2 | 13 | 15.5 | 222 | 5.5 |
| *RGY-250 | *TCS-250×230 | *SKY-230 | 250 | 230 | 12.2 | 13 | 15.5 | 248 | 5.5 |
