- SFR 防塵密封件 SAKAGAMI 阪上 液壓 密封件 電話:0755-28545652
訂購致電:0755-28545652 手機:13602589346

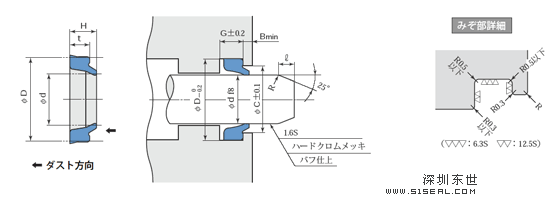

| 型號明細 | 密封件的公稱尺寸及腔體尺寸（単位：mm） | ||||||
|---|---|---|---|---|---|---|---|
| 標準（RN 912） | d | D | H | t | G | C | B |
| SFR-16K | 16 | 24 | 6 | 4.5 | 5 | 20.3 | 2 |
| SFR-18K | 18 | 26 | 6 | 4.5 | 5 | 22.3 | 2 |
| SFR-20K | 20 | 28 | 6 | 4.5 | 5 | 24.3 | 2 |
| SFR-22K | 22 | 30 | 6 | 4.5 | 5 | 26.3 | 2 |
| SFR-22.4K | 22.4 | 30.4 | 6 | 4.5 | 5 | 26.7 | 2 |
| SFR-25K | 25 | 33 | 6 | 4.5 | 5 | 29.3 | 2 |
| SFR-28K | 28 | 36 | 6 | 4.5 | 5 | 32.3 | 2 |
| SFR-30K | 30 | 38 | 6.5 | 5 | 6 | 34 | 2 |
| *SFR-31.5K | 31.5 | 39.5 | 6.5 | 5 | 6 | 35.5 | 2 |
| SFR-32K | 32 | 40 | 6.5 | 5 | 6 | 36 | 2 |
| SFR-35K | 35 | 43 | 6.5 | 5 | 6 | 39 | 2 |
| *SFR-35.5K | 35.5 | 43.5 | 6.5 | 5 | 6 | 39.5 | 2 |
| *SFR-36K | 36 | 44 | 6.5 | 5 | 6 | 40 | 2 |
| SFR-40K | 40 | 48 | 6.5 | 5 | 6 | 44 | 2 |
| SFR-45K | 45 | 53 | 6.5 | 5 | 6 | 49 | 2 |
| SFR-50K | 50 | 58 | 6.5 | 5 | 6 | 54 | 2 |
| SFR-55K | 55 | 63 | 6.5 | 5 | 6 | 59 | 2 |
| SFR-60K | 60 | 68 | 6.5 | 5 | 6 | 64 | 2 |
| *SFR-63K | 63 | 71 | 6.5 | 5 | 6 | 67 | 2 |
| *SFR-70K | 70 | 80 | 8 | 6 | 7 | 75 | 3 |
| *SFR-75K | 75 | 85 | 8 | 6 | 7 | 80 | 3 |
| *SFR-80K | 80 | 90 | 8 | 6 | 7 | 85 | 3 |
