- PPD 活塞專用氣動密封件 SAKAGAMI 阪上 液壓 密封件
訂購致電:0755-28545652 手機:13602589346

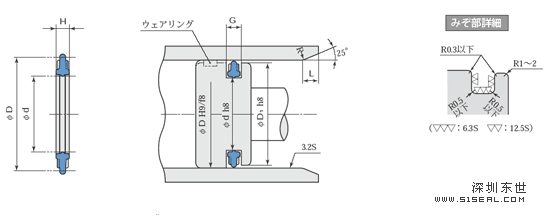

| 型號明細 | 互換PSD | 密封件的公稱尺寸及腔體尺寸（単位：mm) | ||||||
|---|---|---|---|---|---|---|---|---|
| 標準 （RN 729） |
D | d | H | G | D1 | L | ||
| PPD-10 | *PSD-10 | 10 | 5.4 | 1.6 | 1.8 | ＋0.1 0 |
9.7 | 1.5 |
| PPD-12 | *PSD-12 | 12 | 7.4 | 1.6 | 1.8 | 11.7 | 1.5 | |
| PPD-15 | *PSD-15 | 15 | 10.4 | 1.6 | 1.8 | 14.7 | 1.5 | |
| PPD-16 | *PSD-16 | 16 | 11.4 | 1.6 | 1.8 | 15.7 | 1.5 | |
| PPD-20 | *PSD-20 | 20 | 14 | 2.2 | 2.4 | 19.5 | 1.5 | |
| PPD-25 | *PSD-25 | 25 | 17 | 3 | 3.2 | +0.15 0 |
24.5 | 2 |
| PPD-30 | *PSD-30 | 30 | 22 | 3 | 3.2 | 29.5 | 2 | |
| PPD-32 | *PSD-32 | 32 | 24 | 3 | 3.2 | 31.5 | 2 | |
| PPD-40 | *PSD-40 | 40 | 32 | 3 | 3.2 | 39.5 | 2 | |
| PPD-50 | *PSD-50 | 50 | 40 | 3.7 | 4 | ＋0.25 0 |
49.5 | 2.5 |
| PPD-63 | *PSD-63 | 63 | 53 | 3.7 | 4 | 62.4 | 2.5 | |
| PPD-80 | *PSD-80 | 80 | 65 | 5.6 | 6 | 79.4 | 3 | |
| PPD-100 | *PSD-100 | 100 | 85 | 5.6 | 6 | 99.4 | 3 | |
| *PPD-125 | *PSD-125 | 125 | 110 | 5.6 | 6 | 124.3 | 3.5 | |
| *PPD-140 | *PSD-140 | 140 | 125 | 5.6 | 6 | 139.3 | 3.5 | |
| *PPD-160 | *PSD-160 | 160 | 140 | 7.6 | 8 | 159.3 | 5 | |
| *PPD-180 | *PSD-180 | 180 | 160 | 7.6 | 8 | 179.3 | 5 | |
