- PNY 活塞桿專用氣動密封件 SAKAGAMI 阪上 液壓 密封件
訂購致電:0755-28545652 手機:13602589346

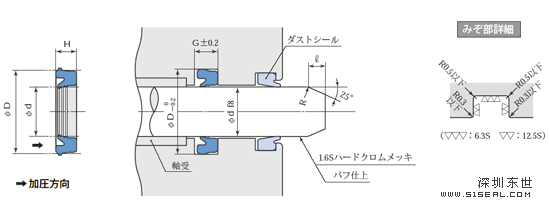

| 型號明細 | 密封件的公稱尺寸及腔體尺寸 （単位：mm） | |||||
|---|---|---|---|---|---|---|
| 標準 （RN 713） |
耐熱用 （RF 905） |
d | D | H | G |  |
| PNY-16 | 16 | 24 | 5.2 | 5.7 | 1.5 | |
| PNY-18 | 18 | 26 | 5.2 | 5.7 | 1.5 | |
| PNY-20 | 20 | 28 | 5.2 | 5.7 | 1.5 | |
| *PNY-22 | 22 | 30 | 5.2 | 5.7 | 1.5 | |
| PNY-22.4 | 22.4 | 30 | 5.2 | 5.7 | 1.5 | |
| PNY-25 | *PNY-25F | 25 | 33 | 5.2 | 5.7 | 1.5 |
| PNY-28 | 28 | 36 | 5.2 | 5.7 | 1.5 | |
| PNY-30 | 30 | 40 | 6.5 | 7 | 3 | |
| PNY-32 | *PNY-32F | 32 | 42 | 6.5 | 7 | 3 |
| PNY-35 | 35 | 45 | 6.5 | 7 | 3 | |
| *PNY-35.5 | 35.5 | 45.5 | 6.5 | 7 | 3 | |
| *PNY-36 | 36 | 46 | 6.5 | 7 | 3 | |
| PNY-40 | 40 | 50 | 6.5 | 7 | 3 | |
| PNY-45 | 45 | 55 | 6.5 | 7 | 3 | |
| PNY-50 | 50 | 60 | 6.5 | 7 | 3 | |
| *PNY-55 | 55 | 65 | 6.5 | 7 | 3 | |
| PNY-60 | 60 | 70 | 6.5 | 7 | 3 | |
| *PNY-0063001N713 | 63 | 73 | 6.5 | 7 | 3 | |
| PNY-70 | 70 | 80 | 6.5 | 7 | 3 | |
