- PGY 活塞專用氣動密封件 SAKAGAMI 阪上 液壓 密封件
訂購致電:0755-28545652 手機:13602589346

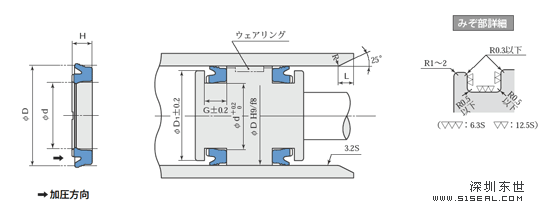

| 型號明細 | 密封件的公稱尺寸及腔體尺寸（単位：mm） | ||||||
|---|---|---|---|---|---|---|---|
| 標準 （RN 713） |
耐熱用 （RF 905） |
D | d | H | G | D1 | L |
| *PGY-0020001N713 | 20 | 12 | 5.2 | 5.7 | 17 | 3 | |
| PGY-0025001N713 | 25 | 17 | 5.2 | 5.7 | 23 | 3 | |
| *PGY-0028001N713 | 28 | 20 | 5.2 | 5.7 | 26 | 3 | |
| PGY-30 | 30 | 22.4 | 5.2 | 5.7 | 29 | 3 | |
| PGY-32 | 32 | 24 | 5.2 | 5.7 | 31 | 3 | |
| PGY-40 | 40 | 30 | 6.5 | 7 | 39 | 3 | |
| PGY-50 | 50 | 40 | 6.5 | 7 | 49 | 3 | |
| PGY-63 | 63 | 53 | 6.5 | 7 | 62 | 3 | |
| PGY-80 | 80 | 70 | 6.5 | 7 | 79 | 3 | |
| PGY-100 | *PGY-100F | 100 | 85 | 9.5 | 10 | 98.5 | 4 |
| PGY-120 | 120 | 105 | 9.5 | 10 | 118.5 | 4 | |
| PGY-125 | *PGY-125F | 125 | 110 | 9.5 | 10 | 123.5 | 4 |
| PGY-140 | 140 | 125 | 9.5 | 10 | 138.5 | 4 | |
| PGY-150 | *PGY-150F | 150 | 135 | 9.5 | 10 | 148.5 | 4 |
| PGY-160 | 160 | 145 | 9.5 | 10 | 158.5 | 4 | |
| PGY-180 | 180 | 165 | 9.5 | 10 | 178.5 | 4 | |
| PGY-200 | 200 | 180 | 12 | 13 | 198 | 5 | |
| PGY-250 | 250 | 230 | 12 | 13 | 248 | 5 | |
| *PGY-300 | 300 | 280 | 14 | 15 | 298 | 5 | |
