- PCS 氣動緩沖密封件 SAKAGAMI 阪上 液壓 密封件
訂購致電:0755-28545652 手機:13602589346

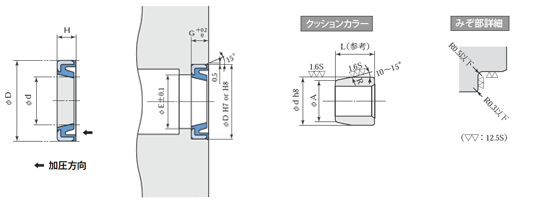

| 型號明細(xì) | 密封件的公稱尺寸及腔體尺寸（単位：mm） | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 標(biāo)準(zhǔn)（RN 803） | 耐熱用（RF 903） | d | D | H | G | E | A | L | |
| *PCS -10 | 10 | 18 | 4.7 | 5 | 12.5 | 8 | 15～20 | ||
| *PCS -11.2 | 11.2 | 19.2 | 4.7 | 5 | 13.7 | 9.2 | 15～20 | ||
| PCS-14 | 14 | 22 | 4.7 | 5 | 16.5 | 12 | 15～20 | ||
| *PCS -15 | 15 | 23 | 4.7 | 5 | 17.5 | 13 | 15～20 | ||
| *PCS-16 | *PCS-16F | 16 | 24 | 4.7 | 5 | 18.5 | 14 | 15～20 | |
| PCS-18 | *PCS-18F | 18 | 26 | 4.7 | 5 | 20.5 | 16 | 15～20 | |
| PCS-20 | *PCS-20F | 20 | 28 | 4.7 | 5 | 22.5 | 18 | 15～20 | |
| PCS-22 | 22 | 30 | 4.7 | 5 | 24.5 | 20 | 15～20 | ||
| *PCS-22.4 | 22.4 | 30.4 | 4.7 | 5 | 24.9 | 20.4 | 15～20 | ||
| PCS-24 | *PCS-24F | 24 | 32 | 4.7 | 5 | 26.5 | 22 | 15～20 | |
| *PCS-25 | *PCS-25F | 25 | 33 | 4.7 | 5 | 27.5 | 23 | 15～30 | |
| PCS-28 | *PCS-28F | 28 | 36 | 4.7 | 5 | 30.5 | 26 | 15～30 | |
| PCS-30 | *PCS-30F | 30 | 40 | 5.6 | 6 | 33 | 28 | 20～30 | |
| *PCS-31.5 | 31.5 | 41.5 | 5.6 | 6 | 34.5 | 29.5 | 20～30 | ||
| PCS-35 | *PCS-35F | 35 | 45 | 5.6 | 6 | 38 | 33 | 20～30 | |
| *PCS-35.5 | 35.5 | 45.5 | 5.6 | 6 | 38.5 | 33.5 | 20～30 | ||
| PCS-38 | *PCS-38F | 38 | 48 | 5.6 | 6 | 41 | 36 | 20～30 | |
| PCS-40 | *PCS-40F | 40 | 50 | 5.6 | 6 | 43 | 38 | 20～40 | |
| PCS-45 | 45 | 55 | 5.6 | 6 | 48 | 43 | 20～40 | ||
| PCS-50 | *PCS-50F | 50 | 62 | 6.6 | 7 | 53 | 48 | 25～40 | |
| PCS-55 | 55 | 67 | 6.6 | 7 | 58 | 53 | 25～40 | ||
| *PCS-56 | 56 | 68 | 6.6 | 7 | 59 | 54 | 25～40 | ||
| PCS-60 | *PCS-60F | 60 | 72 | 6.6 | 7 | 63 | 58 | 25～40 | |
| PCS-65 | 65 | 77 | 6.6 | 7 | 68 | 63 | 25～40 | ||
| PCS -0075002N803 | *PCS -0075001F903 | 75 | 87 | 6.6 | 7 | 78 | 73 | ||
| PCS -0085002N803 | *PCS -0085001F903 | 85 | 97 | 6.6 | 7 | 88 | 83 | ||
| *PCS -0120002N803 | *PCS -0120001F903 | 120 | 132 | 6.6 | 7 | 123 | 118 | ||
| *PCS -0130001N803 | 130 | 142 | 6.6 | 7 | 133 | 128 | |||
