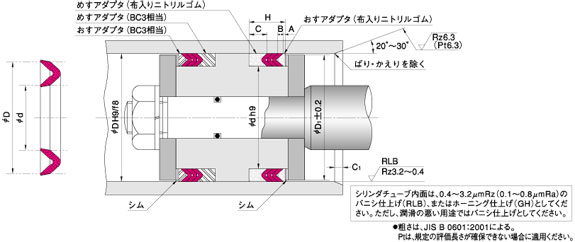

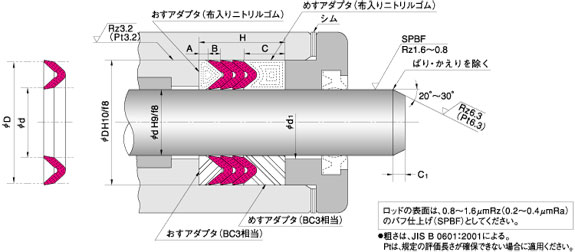

- V99F 活塞和活塞桿密封件-NOK 密封件 小提示：CTRL+F 可直接查到規格
訂購致電:0755-28545652 手機:13602589346
| 名義號 |
密封件公稱尺寸 |
NOK零件號 |
環的尺寸 |
安裝長度H |
C1 |
φd1 |
φD1 |
| 密封件數量 |
| d |
D |
B |
A |
C |
3 |
4 |
5 |
| Ｆ 6.3 |
6.3 |
16.3 |
|
CV0002C0 |
3 |
5 |
17 |
20 |
23 |
2 |
d＋1 |
D－1 |
| Ｆ 7.1 |
7.1 |
17.1 |
CV0006C0 |
2.5 |
| Ｆ 8 |
8 |
18 |
CV0011C0 |
| Ｆ 9 |
9 |
19 |
CV0019C0 |
| Ｆ 10 |
10 |
20 |
CV0028C0 |
| Ｆ 11.2 |
11.2 |
21.2 |
CV0038C0 |
| Ｆ 12.5 |
12.5 |
22.5 |
CV0047C0 |
| Ｆ 14 |
14 |
24 |
CV0057C0 |
| Ｆ 16 |
16 |
26 |
CV0085C0 |
| Ｆ 15 |
15 |
28 |
CV0071C0 |
6.5 |
18.5 |
21.5 |
24.5 |
3.5 |
| Ｆ 18 |
18 |
31 |
CV0109C0 |
| Ｆ 18.5 |
18.5 |
31.5 |
CV0114C0 |
| Ｆ 20 |
20 |
33 |
CV0132C0 |
| Ｆ 22.4 |
22.4 |
35.4 |
CV0163C0 |
| Ｆ 25 |
25 |
38 |
CV0176C0 |
| Ｆ 27 |
27 |
40 |
CV0220C0 |
| Ｆ 28 |
28 |
41 |
CV0231C0 |
| Ｆ 31.5 |
31.5 |
44.5 |
CV0280C0 |
| Ｆ 32 |
32 |
45 |
CV0293C0 |
| Ｆ 34 |
34 |
50 |
|
CV0309C0 |
8 |
23 |
27 |
31 |
4 |
| Ｆ 35.5 |
35.5 |
51.5 |
CV0339C0 |
| Ｆ 40 |
40 |
56 |
CV0370C0 |
| Ｆ 45 |
45 |
61 |
CV0418C0 |
| Ｆ 47 |
47 |
63 |
CV0441C0 |
| Ｆ 50 |
50 |
66 |
CV0457C0 |
| Ｆ 53 |
53 |
69 |
CV0503C0 |
| Ｆ 55 |
55 |
71 |
CV0518C0 |
| Ｆ 56 |
56 |
72 |
CV0539C0 |
| Ｆ 60 |
60 |
76 |
CV0562C0 |
| Ｆ 63 |
63 |
79 |
CV0599C0 |
| Ｆ 64 |
64 |
80 |
CV0620C0 |
| Ｆ 67 |
67 |
87 |
|
CV0651C0 |
10 |
28 |
33 |
38 |
5 |
D－2 |
| Ｆ 70 |
70 |
90 |
CV0674C0 |
| Ｆ 71 |
71 |
91 |
CV0701C0 |
| Ｆ 75 |
75 |
95 |
CV0711C0 |
| Ｆ 80 |
80 |
100 |
CV0755C0 |
| Ｆ 85 |
85 |
105 |
CV0793C0 |
d＋2 |
| Ｆ 90 |
90 |
110 |
CV0827C0 |
| Ｆ 92 |
92 |
112 |
CV0850C0 |
| Ｆ 95 |
95 |
115 |
CV0855C0 |
| Ｆ 100 |
100 |
120 |
CV0873Y0 |
| F 105 |
105 |
125 |
5 |
CV0928C0 |
3 |
d＋2 |
D－2 |
| F 106 |
106 |
126 |
|
CV0940C0 |
| F 112 |
112 |
132 |
CV0967C0 |
| F 118 |
118 |
138 |
CV0990C0 |
| F 120 |
120 |
140 |
CV0994C0 |
| F 125 |
125 |
150 |
|
CV1018C0 |
12.5 |
33.5 |
39.5 |
45.5 |
6.5 |
| F 132 |
132 |
157 |
CV1054C0 |
| F 135 |
135 |
160 |
CV1063C0 |
| F 140 |
140 |
165 |
CV1088C0 |
| F 145 |
145 |
170 |
CV1117C0 |
| F 150 |
150 |
175 |
CV1144C0 |
| F 155 |
155 |
180 |
CV1177C0 |
| F 160 |
160 |
185 |
CV1184C0 |
| F 165 |
165 |
190 |
CV1204C0 |
| F 170 |
170 |
195 |
CV1216C0 |
| F 175 |
175 |
200 |
CV1236C0 |
| F 180 |
180 |
205 |
CV1261C0 |
| F 190 |
190 |
215 |
CV1287C0 |
| F 199 |
199 |
224 |
CV1309C0 |
| F 200 |
200 |
225 |
CV1316C0 |
| F 212 |
212 |
237 |
CV1351C0 |
| F 224 |
224 |
249 |
CV1385C0 |
| F 225 |
225 |
250 |
CV1393C0 |
| F 236 |
236 |
261 |
CV1417C0 |
D－3 |
| F 250 |
250 |
275 |
CV1446C0 |
| F 265 |
265 |
297 |
|
CV1487C0 |
16 |
40 |
47 |
54 |
7.5 |
d＋3 |
| F 280 |
280 |
312 |
CV1513C0 |
| F 300 |
300 |
332 |
CV1540C0 |
| F 315 |
315 |
347 |
CV1570C0 |
| F 335 |
335 |
367 |
CV1593C0 |
| F 355 |
355 |
387 |
CV1608C0 |
| F 375 |
375 |
407 |
CV1631A0 |
| F 400 |
400 |
432 |
CV1642C0 |
| F 425 |
425 |
457 |
CV1665C0 |
| F 450 |
450 |
482 |
CV1889C0 |
| F 475 |
475 |
507 |
CV1681C0 |
| F 500 |
500 |
532 |
CV1692C0 |
| F 530 |
530 |
570 |
|
CV1701C0 |
20 |
47 |
55 |
63 |
10 |
| F 560 |
560 |
600 |
CV1890C0 |
| F 600 |
600 |
640 |
CV1827C0 |
| F 630 |
630 |
670 |
CV1729C0 |
|
