- 軸用格萊圈(格來圈) GSI 密封圈 液壓 密封件
訂購致電:0755-28545652 手機:13602589346
標準材料,密封體:填充聚四氟乙烯F-PTFE,O形圈:丁腈橡膠NBR或氟橡膠FKM,應用范圍:液壓往復運動環境。正確使用，可在高、中、低壓及重載、高頻工況下的活塞桿密封場合非常出色。GSI型特別適用在長行程的情況，并在范圍較廣的流體和高溫場合，可適用較大的活塞桿間隙。例如用在推土機、挖掘機、鍛壓機、陶瓷壓磚機、軋鋼機、伺服閥和其它機床等。設計選用時可參考Trelleborg公司RG4系列、Parker公司ON系列、AS公司的XAB系列標準。
特點:靜密封性能非常好,可允許較大的擠出間隙,視應用場合而定,故可降低加工費用,由于較大的擠出間隙,在有污物的介質中也可安全使用,摩擦力小,無爬行現象,溝槽簡單,可用于整體式活塞,由于可采用較多的材料,所以對工作條件的適應性強,適于最新環保安全的液壓液（生物油）
工況條件
特點:靜密封性能非常好,可允許較大的擠出間隙,視應用場合而定,故可降低加工費用,由于較大的擠出間隙,在有污物的介質中也可安全使用,摩擦力小,無爬行現象,溝槽簡單,可用于整體式活塞,由于可采用較多的材料,所以對工作條件的適應性強,適于最新環保安全的液壓液（生物油）
工況條件
|
速 度 |
壓力范圍 |
溫度范圍 |
介 質 |
可供直徑范圍 |
|
|
0～60MPa |
|
石油基液壓油、難燃液壓液、環保安全液壓液（生物油）、水和其它，取決于密封圈材質 |
5 |
|

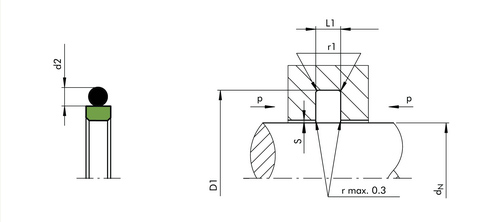

軸徑dN h9 |
溝槽外徑 |
溝槽寬度 |
圓角 |
徑向間隙 S max |
0形圈截面 |
||||
|
標準規格 |
輕型 |
重型 |
D1 H9 |
L1 |
r1 |
10 MPa |
20 MPa |
40 MPa |
d2 |
|
3-7.9 |
8-18.9 |
- |
d+4.9 |
2.2 |
0.4 |
0.3 |
0.2 |
0.15 |
1.78 |
|
8-18.9 |
19-37.9 |
- |
d+7.3 |
3.2 |
0.6 |
0.4 |
0.25 |
0.15 |
2.62 |
|
19-37.9 |
38-199.9 |
8-18.9 |
d+10.7 |
4.2 |
1.0 |
0.4 |
0.25 |
0.20 |
3.53 |
|
38-199.9 |
200-255.9 |
19-37.9 |
d+15.1 |
6.3 |
1.3 |
0.5 |
0.30 |
0.20 |
5.33 |
|
200-255.9 |
256-649.9 |
38-199.9 |
d+20.5 |
8.1 |
1.8 |
0.6 |
0.35 |
0.25 |
7.00 |
|
256-649.9 |
650-999.9 |
200-255.9 |
d+24.0 |
8.1 |
1.8 |
0.6 |
0.35 |
0.25 |
7.00 |
|
650-999.9 |
≥1000.0 |
256-649.9 |
d+27.3 |
9.5 |
2.5 |
0.7 |
0.50 |
0.30 |
8.40 |
|
≥1000.0 |
- |
650-999.9 |
d+38.0 |
13.8 |
3.0 |
1.0 |
0.70 |
0.60 |
12.00 |
| GSI 軸用格萊圈(格來圈) >>>>>>>>>>>>格萊圈(格來圈)的安裝方法 | |||||||||||||
| 訂貨號 | 軸徑 | 外徑 | 寬度 | 訂貨號 | 軸徑 | 外徑 | 寬度 | ||||||
| d1 h9 | DN H9 | L1+0.2 | d1 h9 | DN H9 | L1+0.2 | ||||||||
| GSI0050 | 5 | 9.9 | 2.2 | GSI2500 | 250 | 270.5 | 8.1 | ||||||
| GSI0060 | 6 | 10.9 | 2.2 | GSI2600 | 260 | 284.0 | 8.1 | ||||||
| GSI0070 | 7 | 11.9 | 2.2 | GSI2700 | 270 | 290.5 | 8.1 | ||||||
| GSI0080 | 8 | 15.3 | 3.2 | GSI2700/1 | 270 | 294.0 | 8.1 | ||||||
| GSI0100 | 10 | 17.3 | 3.2 | GSI2750 | 275 | 299.0 | 8.1 | ||||||
| GSI0120 | 12 | 19.3 | 3.2 | GSI2800 | 280 | 300.5 | 8.1 | ||||||
| GSI0140 | 14 | 21.3 | 3.2 | GSI2800/1 | 280 | 304.0 | 8.1 | ||||||
| GSI0150 | 15 | 22.3 | 3.2 | GSI2900 | 290 | 314.0 | 8.1 | ||||||
| GSI0180 | 18 | 25.3 | 3.2 | GSI3000 | 300 | 324.0 | 8.1 | ||||||
| GSI0190 | 19 | 29.7 | 4.2 | GSI3100 | 310 | 334.0 | 8.1 | ||||||
| GSI0200 | 20 | 30.7 | 4.2 | GSI3200 | 320 | 344.0 | 8.1 | ||||||
| GSI0220 | 22 | 32.7 | 4.2 | GSI3300 | 330 | 354.0 | 8.1 | ||||||
| GSI0250 | 25 | 35.7 | 4.2 | GSI3400 | 340 | 364.0 | 8.1 | ||||||
| GSI0254 | 25.4 | 36.1 | 4.2 | GSI3500 | 350 | 374.0 | 8.1 | ||||||
| GSI0260 | 26 | 36.7 | 4.2 | GSI3600 | 360 | 384.0 | 8.1 | ||||||
| GSI0280 | 28 | 38.7 | 4.2 | GSI3700 | 370 | 394.0 | 8.1 | ||||||
| GSI0300 | 30 | 40.7 | 4.2 | GSI3800 | 380 | 404.0 | 8.1 | ||||||
| GSI0320 | 32 | 42.7 | 4.2 | GSI3900 | 390 | 414.0 | 8.1 | ||||||
| GSI0350 | 35 | 45.7 | 4.2 | GSI4000 | 400 | 424.0 | 8.1 | ||||||
| GSI0360 | 36 | 46.7 | 4.2 | GSI4100 | 410 | 434.0 | 8.1 | ||||||
| GSI0380 | 38 | 53.1 | 6.3 | GSI4200 | 420 | 444.0 | 8.1 | ||||||
| GSI0400 | 40 | 55.1 | 6.3 | GSI4300 | 430 | 454.0 | 8.1 | ||||||
| GSI0420 | 42 | 57.1 | 6.3 | GSI4400 | 440 | 464.0 | 8.1 | ||||||
| GSI0450 | 45 | 60.1 | 6.3 | GSI4500 | 450 | 474.0 | 8.1 | ||||||
| GSI0480 | 48 | 63.1 | 6.3 | GSI4600 | 460 | 484.0 | 8.1 | ||||||
| GSI0500 | 50 | 65.1 | 6.3 | GSI4700 | 470 | 494.0 | 8.1 | ||||||
| GSI0508 | 50.8 | 65.9 | 6.3 | GSI4800 | 480 | 504.0 | 8.1 | ||||||
| GSI0550 | 55 | 70.1 | 6.3 | GSI4900 | 490 | 514.0 | 8.1 | ||||||
| GSI0600 | 60 | 75.1 | 6.3 | GSI5000 | 500 | 524.0 | 8.1 | ||||||
| GSI0630 | 63 | 78.1 | 6.3 | GSI5100 | 510 | 534.0 | 8.1 | ||||||
| GSI0650 | 65 | 80.1 | 6.3 | GSI5200 | 520 | 544.0 | 8.1 | ||||||
| GSI0700 | 70 | 85.1 | 6.3 | GSI5300 | 530 | 554.0 | 8.1 | ||||||
| GSI0750 | 75 | 90.1 | 6.3 | GSI5400 | 540 | 564.0 | 8.1 | ||||||
| GSI0800/1 | 80 | 90.7 | 4.2 | GSI5500 | 550 | 574.0 | 8.1 | ||||||
| GSI0800 | 80 | 95.1 | 6.3 | GSI5800 | 580 | 604.0 | 8.1 | ||||||
| GSI0850 | 85 | 100.1 | 6.3 | GSI5900 | 590 | 614.0 | 8.1 | ||||||
| GSI0900 | 90 | 105.1 | 6.3 | GSI6000 | 600 | 624.0 | 8.1 | ||||||
| GSI0950 | 95 | 110.1 | 6.3 | GSI6100 | 610 | 634.0 | 8.1 | ||||||
| GSI1000 | 100 | 110.7 | 4.2 | GSI6200 | 620 | 644.0 | 8.1 | ||||||
| GSI1000/1 | 100 | 115.1 | 6.3 | GSI6300 | 630 | 654.0 | 8.1 | ||||||
| GSI1016 | 101.6 | 116.7 | 6.3 | GSI6400 | 640 | 664.0 | 8.1 | ||||||
| GSI1050 | 105 | 120.1 | 6.3 | GSI6500 | 650 | 677.3 | 9.5 | ||||||
| GSI1100 | 110 | 125.1 | 6.3 | GSI6600 | 660 | 687.3 | 9.5 | ||||||
| GSI1100/1 | 110 | 130.5 | 8.1 | GSI6700 | 670 | 697.3 | 9.5 | ||||||
| GSI1120 | 112 | 127.1 | 6.3 | GSI6800 | 680 | 707.3 | 9.5 | ||||||
| GSI1150 | 115 | 130.1 | 6.3 | GSI6880 | 688 | 715.3 | 9.5 | ||||||
| GSI1180 | 118 | 133.1 | 6.3 | GSI6900 | 690 | 717.3 | 9.5 | ||||||
| GSI1200 | 120 | 135.1 | 6.3 | GSI7100 | 710 | 737.3 | 9.5 | ||||||
| GSI1250 | 125 | 140.1 | 6.3 | GSI7400 | 740 | 767.3 | 9.5 | ||||||
| GSI1300 | 130 | 145.1 | 6.3 | GSI7700 | 770 | 797.3 | 9.5 | ||||||
| GSI1350 | 135 | 150.1 | 6.3 | GSI8000 | 800 | 827.3 | 9.5 | ||||||
| GSI1400/1 | 140 | 150.7 | 4.2 | GSI8500 | 850 | 877.3 | 9.5 | ||||||
| GSI1400 | 140 | 155.1 | 6.3 | GSI8700 | 870 | 897.3 | 9.5 | ||||||
| GSI1450 | 145 | 160.1 | 6.3 | GSI9000 | 900 | 927.3 | 9.5 | ||||||
| GSI1500 | 150 | 165.1 | 6.3 | GSI9100 | 910 | 937.3 | 9.5 | ||||||
| GSI1600 | 160 | 175.1 | 6.3 | GSI9500 | 950 | 977.3 | 9.5 | ||||||
| GSI1600/1 | 160 | 180.5 | 8.1 | GSI9600 | 960 | 987.3 | 9.5 | ||||||
| GSI1650 | 165 | 180.1 | 6.3 | GSI10000 | 1000 | 1027.3 | 9.5 | ||||||
| GSI1700/1 | 170 | 180.7 | 4.2 | GSI10000/1 | 1000 | 1038.0 | 13.8 | ||||||
| GSI1700 | 170 | 185.1 | 6.3 | GSI10500/1 | 1050 | 1077.3 | 9.5 | ||||||
| GSI1750 | 175 | 190.1 | 6.3 | GSI10500 | 1050 | 1088.0 | 13.8 | ||||||
| GSI1800 | 180 | 195.1 | 6.3 | GSI11000 | 1100 | 1138.0 | 13.8 | ||||||
| GSI1800/1 | 180 | 200.5 | 8.1 | GSI11600 | 1160 | 1198.0 | 13.8 | ||||||
| GSI1900 | 190 | 205.1 | 6.3 | GSI12000/1 | 1200 | 1227.3 | 9.5 | ||||||
| GSI2000 | 200 | 215.1 | 6.3 | GSI12000 | 1200 | 1238.0 | 13.8 | ||||||
| GSI2000/1 | 200 | 220.5 | 8.1 | GSI13000/1 | 1300 | 1327.3 | 9.5 | ||||||
| GSI2100 | 210 | 230.5 | 8.1 | GSI13000 | 1300 | 1338.0 | 13.8 | ||||||
| GSI2200/1 | 220 | 235.1 | 6.3 | GSI15000/1 | 1500 | 1527.3 | 9.5 | ||||||
| GSI2200 | 220 | 240.5 | 8.1 | GSI15000 | 1500 | 1538.0 | 13.8 | ||||||
| GSI2300/1 | 230 | 245.1 | 6.3 | GSI16000 | 1600 | 1638.0 | 13.8 | ||||||
| GSI2300 | 230 | 250.5 | 8.1 | GSI18000 | 1800 | 1838.0 | 13.8 | ||||||
| GSI2400 | 240 | 260.5 | 8.1 | GSI20000 | 2000 | 2038.0 | 13.8 | ||||||
