- 重載孔用格萊圈(格來圈) GSF-S密封圈 液壓 密封件
訂購致電:0755-28545652 手機:13602589346
標準材料,密封環:填充聚四氟乙烯F-PTFE,0形圈:丁腈橡膠NBR應用范圍:由一個PTFE矩形截面滑環和一個作為加載元件的矩形圈組成的雙組合密封圈。此種型式的同軸密封，主要用于重型機械或冶金設備的液壓缸活塞密封系統。如：液壓機、注塑機等。設計選用時可參考Merkel公司OMK-S產品標準。
特點:耐壓性很高,結構防扭曲,防擠出特性非常好,耐腐蝕性高,導熱性好,低摩擦,不會造成“液壓爬行”,由于有橡膠異形圈，接觸壓力高
|
速 度 |
壓力范圍 |
溫度范圍 |
介 質 |
可供直徑范圍 |
|
|
0～60MPa |
|
液壓油、難燃液壓液、環保安全液壓液（生物油）、水和其它，取決于密封圈材質 |
40 |
|

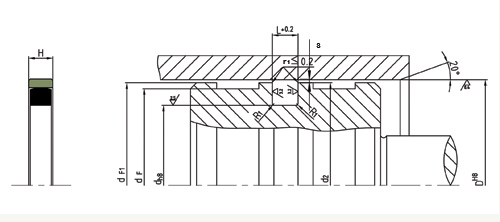

軸徑 |
底徑 |
溝槽寬度 |
圓角 |
徑向間隙 S max |
|||
|
D H8 |
d h8 |
L+0.2 |
r1 |
16 MPa |
26 MPa |
32 MPa |
40 MPa |
|
55.0-149.9 |
D-10.0 |
10.0 |
0.4 |
0.60 |
0.50 |
0.40 |
0.40 |
|
150.0-244.9 |
D-12.5 |
12.5 |
0.4 |
0.75 |
0.65 |
0.55 |
0.50 |
|
245.0-500.0 |
D-15.0 |
15.0 |
0.8 |
0.75 |
0.65 |
0.55 |
0.50 |
|
500.1-760.0 |
D-17.5 |
17.5 |
1.2 |
0.75 |
0.65 |
0.55 |
0.50 |
|
760.1-999.9 |
D-20.0 |
20.0 |
1.2 |
0.80 |
0.70 |
0.60 |
0.55 |
|
≧1000 |
D-20.0 |
20.5 |
1.2 |
0.80 |
0.70 |
0.60 |
0.55 |
| GSF-S 重載孔用格萊圈(格來圈) >>>>>>>>>>>>格萊圈(格來圈)的安裝方法 | |||||||||||||
| 訂貨號 | 缸徑 | 底徑 | 寬度 | 訂貨號 | 缸徑 | 底徑 | 寬度 | ||||||
| D H8 | d h8 | L+0.2 | D H8 | d h8 | L+0.2 | ||||||||
| GSF-S0550 | 55 | 40 | 10.0 | GSF-S5100 | 510 | 475 | 17.5 | ||||||
| GSF-S0700 | 70 | 55 | 10.0 | GSF-S5200 | 520 | 485 | 17.5 | ||||||
| GSF-S0800 | 80 | 60 | 10.0 | GSF-S5300 | 530 | 495 | 17.5 | ||||||
| GSF-S0900 | 90 | 70 | 10.0 | GSF-S5400 | 540 | 505 | 17.5 | ||||||
| GSF-S1000 | 100 | 80 | 10.0 | GSF-S5500 | 550 | 515 | 17.5 | ||||||
| GSF-S1100 | 110 | 90 | 10.0 | GSF-S5600 | 560 | 525 | 17.5 | ||||||
| GSF-S1200 | 120 | 100 | 10.0 | GSF-S5650 | 565 | 530 | 17.5 | ||||||
| GSF-S1300 | 130 | 110 | 10.0 | GSF-S5700 | 570 | 535 | 17.5 | ||||||
| GSF-S1400 | 140 | 120 | 10.0 | GSF-S5800 | 580 | 545 | 17.5 | ||||||
| GSF-S1550 | 155 | 130 | 12.5 | GSF-S5900 | 590 | 555 | 17.5 | ||||||
| GSF-S1650 | 165 | 140 | 12.5 | GSF-S6000 | 600 | 565 | 17.5 | ||||||
| GSF-S1700 | 170 | 145 | 12.5 | GSF-S6100 | 610 | 575 | 17.5 | ||||||
| GSF-S1800 | 180 | 155 | 12.5 | GSF-S6200 | 620 | 585 | 17.5 | ||||||
| GSF-S1850 | 185 | 160 | 12.5 | GSF-S6300 | 630 | 595 | 17.5 | ||||||
| GSF-S1900 | 190 | 165 | 12.5 | GSF-S6400 | 640 | 605 | 17.5 | ||||||
| GSF-S2000 | 200 | 175 | 12.5 | GSF-S6500 | 650 | 615 | 17.5 | ||||||
| GSF-S2050 | 205 | 180 | 12.5 | GSF-S6550 | 655 | 620 | 17.5 | ||||||
| GSF-S2100 | 210 | 185 | 12.5 | GSF-S6600 | 660 | 625 | 17.5 | ||||||
| GSF-S2150 | 215 | 190 | 12.5 | GSF-S6700 | 670 | 635 | 17.5 | ||||||
| GSF-S2200 | 220 | 195 | 12.5 | GSF-S6800 | 680 | 645 | 17.5 | ||||||
| GSF-S2250 | 225 | 200 | 12.5 | GSF-S6900 | 690 | 655 | 17.5 | ||||||
| GSF-S2350 | 235 | 210 | 12.5 | GSF-S7000 | 700 | 665 | 17.5 | ||||||
| GSF-S2450 | 245 | 215 | 15.0 | GSF-S7100 | 710 | 675 | 17.5 | ||||||
| GSF-S2500 | 250 | 220 | 15.0 | GSF-S7200 | 720 | 685 | 17.5 | ||||||
| GSF-S2600 | 260 | 230 | 15.0 | GSF-S7300 | 730 | 695 | 17.5 | ||||||
| GSF-S2750 | 275 | 245 | 15.0 | GSF-S7400 | 740 | 705 | 17.5 | ||||||
| GSF-S2850 | 285 | 255 | 15.0 | GSF-S7500 | 750 | 715 | 17.5 | ||||||
| GSF-S2900 | 290 | 260 | 15.0 | GSF-S7600 | 760 | 725 | 17.5 | ||||||
| GSF-S3100 | 310 | 280 | 15.0 | GSF-S7700 | 770 | 730 | 20.0 | ||||||
| GSF-S3200 | 320 | 290 | 15.0 | GSF-S7800 | 780 | 740 | 20.0 | ||||||
| GSF-S3250 | 325 | 295 | 15.0 | GSF-S8000 | 800 | 760 | 20.0 | ||||||
| GSF-S3300 | 330 | 300 | 15.0 | GSF-S8200 | 820 | 780 | 20.0 | ||||||
| GSF-S3350 | 335 | 305 | 15.0 | GSF-S8300 | 830 | 790 | 20.0 | ||||||
| GSF-S3400 | 340 | 310 | 15.0 | GSF-S8400 | 840 | 800 | 20.0 | ||||||
| GSF-S3500 | 350 | 320 | 15.0 | GSF-S8500 | 850 | 810 | 20.0 | ||||||
| GSF-S3600 | 360 | 330 | 15.0 | GSF-S8700 | 870 | 830 | 20.0 | ||||||
| GSF-S3700 | 370 | 340 | 15.0 | GSF-S8800 | 880 | 840 | 20.0 | ||||||
| GSF-S3800 | 380 | 350 | 15.0 | GSF-S8900 | 890 | 850 | 20.0 | ||||||
| GSF-S3900 | 390 | 360 | 15.0 | GSF-S9000 | 900 | 860 | 20.0 | ||||||
| GSF-S4000 | 400 | 370 | 15.0 | GSF-S9400 | 940 | 900 | 20.0 | ||||||
| GSF-S4550 | 455 | 420 | 17.5 | GSF-S9800 | 980 | 940 | 20.0 | ||||||
| GSF-S4600 | 460 | 425 | 17.5 | GSF-S1000 | 1000 | 960 | 20.0 | ||||||
| GSF-S4600 | 460 | 430 | 15.0 | GSF-S10500 | 1050 | 1010 | 20.0 | ||||||
| GSF-S4800 | 480 | 450 | 15.0 | GSF-S10900 | 1090 | 1050 | 20.0 | ||||||
| GSF-S4900 | 490 | 460 | 15.0 | GSF-S11000 | 1100 | 1060 | 20.0 | ||||||
| GSF-S5000 | 500 | 470 | 15.0 | GSF-S11200 | 1120 | 1080 | 20.0 | ||||||
